Portable X ray machine for Heating Element — Non-destructive Inspection For Tubular Heater Internal Defects
ubular heaters and heating elements are core components for home appliances and industrial equipment. Hidden internal defects such as offset heating wires, insulation filler voids, tube wall cracks and poor welding can never be found by visual appearance inspection. Defective heating elements will cause short circuit burnout, electric leakage and short service life after assembly, resulting in mass after-sales rework, customer complaints and compensation losses. Traditional destructive sampling inspection will damage qualified products directly, and low sampling coverage will bring huge quality hidden troubles, which has long puzzled heating element manufacturers.

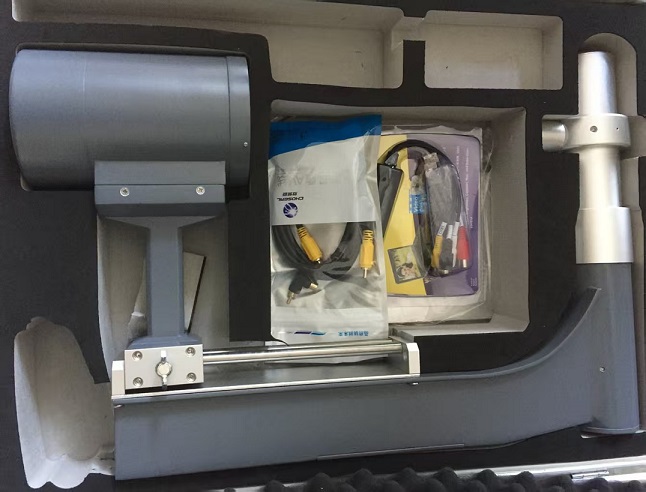

To meet the non-destructive testing demands of tubular heaters and heating elements, we launch the Portable X ray machine for Heating Element. Besides core tubular heater flaw detection, it also supports inspection of die-cast electronic parts, semiconductor components, food foreign matter screening and pharmaceutical package internal checking, realizing multi-scenario application to cut equipment procurement cost for factories.
Key Product Features
Safe, portable & high resolution, clear images without dark room
Lightweight portable design allows flexible movement among workshop stations. Equipped with high-resolution imaging module, it delivers clear internal images under normal indoor environment without dedicated dark room, supporting on-site inspection anytime for multi-station patrol check.
Ultra-low radiation dose, no extra protection required
Optimized ray emission module meets global industrial safety standards strictly. Operators do not need heavy lead clothes or protective masks during operation, simplifying on-site workflow and cutting daily protection management cost for long-term safe operation.
High gain & high sensitivity, capture tiny defects clearly
Adopts professional image enhancement algorithm to display subtle flaws including tiny gaps, micro cracks, filler shortage and heating wire dislocation. Delicate imaging ensures accurate identification of all hidden internal defects of heating elements to avoid missing detection and misjudgment.
Multiple video interfaces for flexible display & data storage
Built-in AV output interface connects monitors, computers and TVs for real-time image preview. It supports inspection video saving and screenshot archiving easily, convenient for batch quality traceability and audit of quality control records.
This portable X-ray device has been widely adopted by multiple heating element manufacturers worldwide: Heater factories apply it for full outgoing inspection of internal heating structure and filler compactness to block defective products in advance; electronic factories detect internal pores and interlayer defects of die-cast parts; semiconductor enterprises check hidden risks inside component packaging; food and pharmaceutical factories conduct rapid spot inspection for small package foreign objects, adapting to various on-site quality control scenarios flexibly.
Destructive sampling inspection leads to material waste and incomplete coverage. This portable X-ray non-destructive testing equipment realizes full internal inspection without product disassembly, balancing testing efficiency, operation safety and flexible adaptability. If you are troubled by hard-to-detect internal defects of heating elements, high sampling loss and bulky fixed inspection equipment limiting on-site use, contact us for equipment test plan and official quotation.
